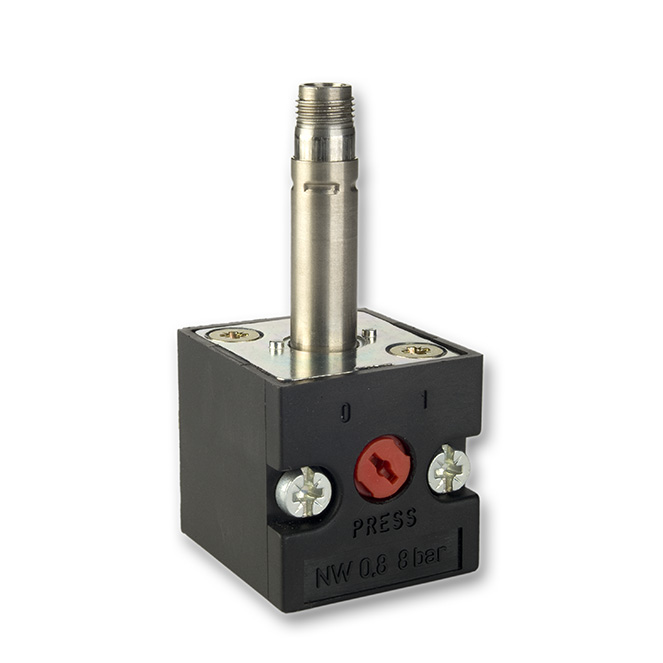

Valve System CNOMO

Height: 30 mm
Switching function: 3/2 way, 2/2 way possible with accessoires
De-energized state: NC (normally closed)
Valve body: plastics
Ambient temperature: - 10 °C to + 50 °C
Quality of medium according to ISO 8573-1: compressed air class 4, 3, 4
Mounting position: any (preferably plunger in vertical direction)
Sealing material: FPM (other sealing materials on request)
Valve System CNOMO, 30 mm, 3/2 way, 2/2 way possible with accessoires, NC (normally closed)
