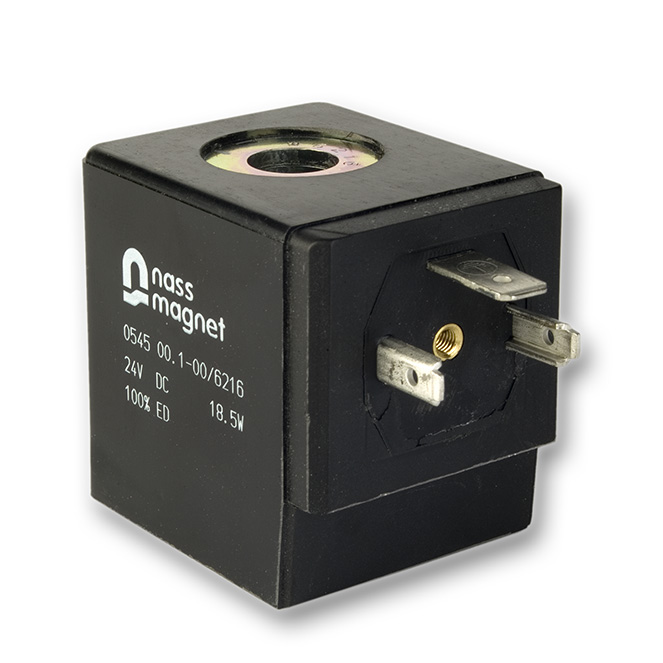

Solenoid Coil
| Width: | 36 mm |
| Connection type: | form A – EN 175301-803-A |
| Moulding material: | thermoset resin |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 20 °C to + 50 °C |
| Relative duty cycle: | 100 % |
| Insulation class of insulating materials according to DIN VDE 0580: | F |
| Degree of protection with connector according to EN 60529: | IP 65 (IP 67 on request) |
| Class of protection: | 1 |
| Imprint: | nass magnet (customer imprint possible) |
Further details can be found in our page Catalogues
