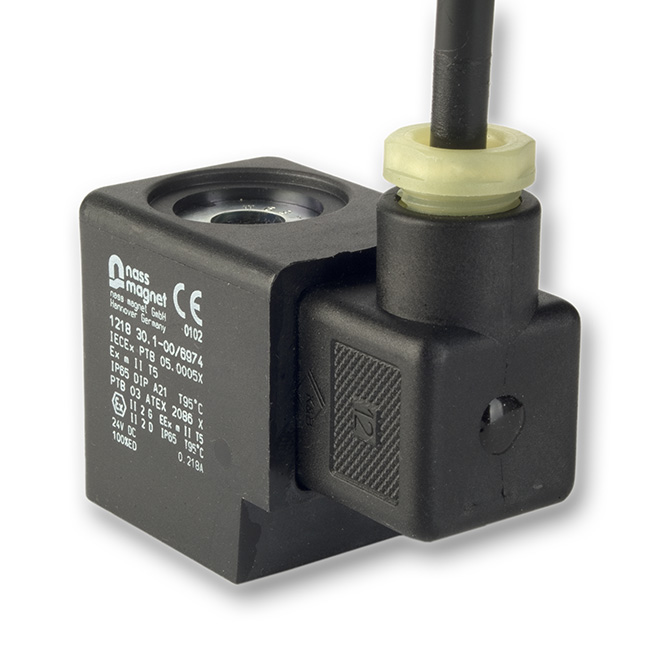

Solenoid Coil System 13 ATEX
| Width: | 36 mm |
| Protection by encaps.: |  ll 2 G Ex mb ll T6, T5, T4 Gb ll 2 D Ex tb IIIC T80 °C, T95 °C T130 °C Db IP65 |
| Connection type: | three-wired cable, with ferrules |
| Moulding material: | thermoplastic |
| Voltage tolerance: | ± 10 % |
| Ambient temperature: | - 20 °C to + 40 °C/+ 50 °C |
| Relative duty cycle: | 100 % |
| Insulation class of insulating materials according to DIN VDE 0580: | F |
| Degree of protection: | IP 65 |
| Type examination certificates: | PTB 03 ATEX 2086 X, IECEx PTB 05.0005X |
| Imprint: | nass magnet (customer imprint possible) |
| Cable length: | 3 m (other cable lengths on request) |
Further details can be found in our page Catalogues
