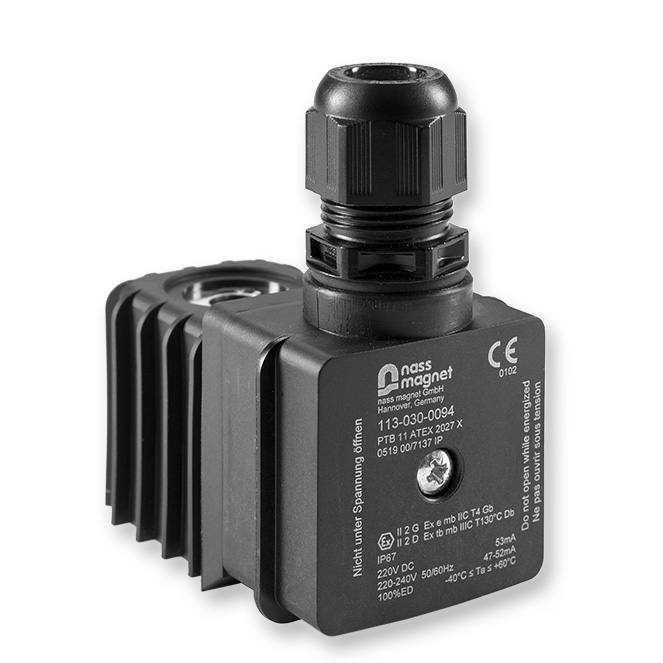

Solenoid Coil System 13 ATEX
with terminal box

Width:	52 mm
Protection by encaps.:	ll 2 G Ex e mb llC T4, T6 Gb ll 2D Ex tb mb IIIC T130 °C, T80 °C Db IP 65, IP 67
Connection type:	terminal box
Moulding material:	thermoplastic
Voltage tolerance:	± 10 %
Ambient temperature:	- 40 °C bis + 50 °C/+ 60 °C
Relative duty cycle:	100 %
Insulation class of insulating materials according to DIN VDE 0580:	F
Degree of protection:	IP 65/IP 67
Type examination certificate:	PTB 11 ATEX 2027 X
Imprint:	nass magnet (customer imprint possible)
